Export & retro

PBM is the headline product — a quick export bakes a tile-baked .pbm with vertex light for the PSP. GLB (retro-baked or modern) is one dialog away. Retro textures are sanitized on the way out.

Toolbar Export...Export...DocsRow 2 · ExportExport...Opens the export dialog: PBM (the retro .pbm map, default) or GLB — modern bake (lightmap-ready) or retro baked (vertex-lit) — with the bake options.Needs: Nothing (always enabled) opens the dialog: Format defaults to PBM (res://exports/exported_map.pbm), with two GLB flavors below it — the Modern Bake first, the Retro Baked Map second. Everything else on the page applies per format.

For the whole journey on one map, see the walkthroughs: build → export → play, once per pipeline.

The PoiBuilder scene as-is is the authoring format — the live splat shader and decal layers carry a significant performance cost (~4× the retro bake's frame time on the benchmark baseline). It is highly recommended to export and play the baked map (GLB for the modern pipeline, PBM for retro); keep the editable scene for building, testing and iterating.

Modern GLB (baked)

The format to play and ship on the modern pipeline — selecting it in the dialog defaults to the optimized bake: paint baked into textures, no vertex lighting. Authored geometry is kept; collision meshes are named Collider_*; lights are exported as lights, so your realtime lights or a LightmapGI bake stay in charge. Paint has its own switch, Modern paint:

Two authored looks glTF cannot carry come along as data on the nodes, and a Godot consumer restores them with a few lines (the frame benchmark does exactly this): shadow flags — a shadow-casting light tags its glTF node with poi_shadow extras, since KHR_lights_punctual has no shadow field — and the environment preset name, stamped on the scene root as poi_env_preset.

The display environment a consumer applies depends on the flavor, and the difference matters:

  • Retro bake — the map is fully baked: every lumen already lives in the vertex colors and tile textures. The consumer adds NO lighting of any kind; it shows the preset's sky and linear fog and nothing else — PBEnvironment.apply_retro_display(root, preset), which mirrors the PSP renderer exactly. Applying the live preset on top double-lights the map (measured +54% mean luminance at day vs the device) and a filmic tonemap re-decides colors the bake already decided.
  • Modern bake — the map keeps live materials and realtime lights (with shadows restored from poi_shadow), so the full authored environment comes back via PBEnvironment.apply_preset(root, preset): the same sky, ambient and filmic tonemap the editor showed.

A bare imported GLB with neither step renders with engine defaults and reads wrong.

  • Bake into textures (default) — every painted face is composited into its own texture at the same texel density the editor used (256 texels/m), and its UV1 is rewritten into that texture. Self-contained: Godot, Blender, any glTF consumer shows your paint.
  • Include splat data — the geometry keeps its mask coordinates (TEXCOORD_2), each painted face's material carries a poi_splat record in its glTF extras, and the masks, layer textures and decal channel ship as PNGs next to the .glb under <map>.splat/. Use this when the consumer should re-blend at runtime. The recipe (with a reference shader) is in docs/modern_glb_splat.md; PBSplatImport.rebuild_from_extras() restores live, editable paint after a round trip into Godot.

Retro baked map

The path the PSP eats — and what PBM is: the same bake written straight to the binary map instead of a GLB waypoint.

What the export does:

  • Subdivides faces to the texture tiling grid (optional).
  • Bakes direct light, shadows, AO into vertex colours.
  • Bakes splat paint and the decal layer into unique tile textures; unpainted tiles reuse the base.
  • Writes collision hulls.
  • Writes lights, billboards, particle emitters, walkable meshes, environment preset.

Output: .glb as transport, and/or .pbm (the binary map). Both land in project/exports/ (gitignored). The retro GLB still transports the light nodes (handy for dynamic objects), but the baked surfaces are vertex-lit — the reference viewer hides the imported lights to avoid double-lighting, and so should a viewer meant to reproduce the bake.

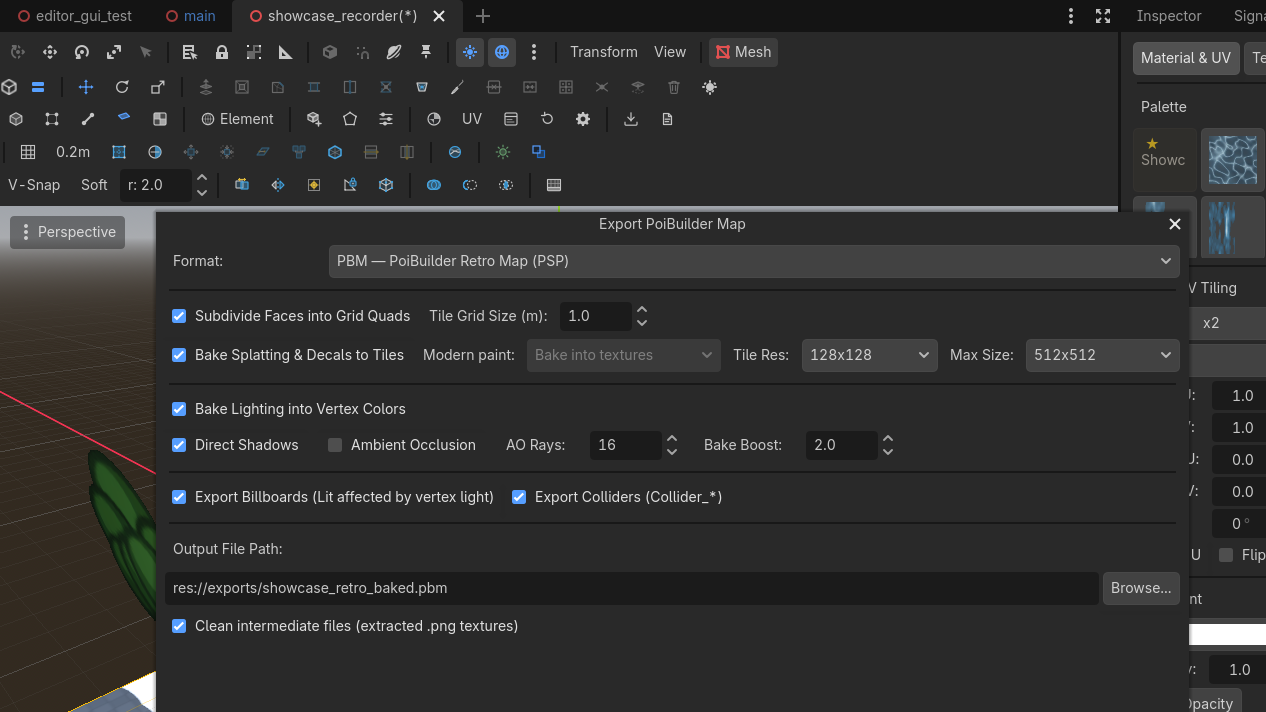

One click to a retro .pbm map.
One click to a retro .pbm map.

Bake boost

Bake Boost in the Export dialog (retro formats: PBM and the retro-baked GLB) multiplies the baked light by a factor before it is written, saturating at 1.0. The default, 1.0, ships the bake exactly as computed. 2.0 lifts a dark map: at dusk the demo courtyard's floor, walls and the HELLO WORLD sign come up out of the gloom.

Dusk, the same courtyard exported twice. Boost 2 lifts the shadows and mid-tones. Coloured light turns paler where a channel saturates: the warm-lit top of the block on the left goes grey-white.
Dusk, the same courtyard exported twice. Boost 2 lifts the shadows and mid-tones. Coloured light turns paler where a channel saturates: the warm-lit top of the block on the left goes grey-white.

The ceiling is what makes it a dusk/night tool. At 2.0, any surface lit past half already shows its bare texture, so a daylit map loses its shading and most of its cast shadows. Until v0.9.184 the default was 2.0; set it back to 2.0 to keep that look on an older map.

Day: Boost 2 flattens every lit surface to its texture colour (the stairs, the waterfall wall). On the right, for comparison, is what modulate-2x hardware draws from the Boost 1 bake. That is not an export option.
Day: Boost 2 flattens every lit surface to its texture colour (the stairs, the waterfall wall). On the right, for comparison, is what modulate-2x hardware draws from the Boost 1 bake. That is not an export option.
[note] Is Boost 2 the old-school modulate-2x? Only in the shadows. Hardware that doubles (PS1/PS2 vertex colour 0x80 = 1.0, Direct3D's MODULATE2X) doubles after the texture multiply, min(2 × texture × light, 1), so light above half overbrights past the texture's own colour, washing towards white. The boost doubles the light and caps it before the multiply, texture × min(2 × light, 1). The two are identical wherever the doubled light stays at or below 1, and the boost never overbrights. On the demo map, 17.9% of the baked colour values sit above half at dusk (where the two part) and 47.6% at day. The shots are Godot's retro display, which matches the PSP renderer's plain texture × vertex-colour multiply.

Scrolling textures

A scrolling texture is a property of the material: the Material dock writes a speed (in texture repeats per second, per UV axis, signed — negative V falls down a wall) onto the material, and the editor viewport animates it live. Playing the PoiBuilder scene itself as your game animates it too, at the same speed. The exports carry the speed, not the animation — whichever consumer wants motion applies the one-line recipe uv(t) = uv(0) + t · speed:

  • PBM — each mesh's header stores uv_scroll_u / uv_scroll_v (format §5.1), and the bake exempts scrolling faces from the tile atlas so the face keeps a texture that can slide. For a proven implementation, read the reference PSP engine — retro_engine/psp/psp_render.c applies the offset per moving mesh on the device — or the Godot viewer, which replays it the same way.
  • GLB (either flavor) — the speed rides the material's glTF extras as "poi_uv_scroll": [u, v] (repeats per second), in both the retro and modern bakes. A consumer that wants the falls to fall reads that record and offsets the material's UVs over time; without those few lines the GLB shows the water at rest — which is exactly what a static glTF viewer will do.
Do not splat-paint a scrolling face. Paint bakes to a static tile; keep painted and scrolling surfaces on separate faces.

Texture sanitization

Retro consumers — the PSP especially — want power-of-two dimensions at or below max texture size (default 512). The export enforces that on every albedo, including:

  • PBMesh tiles
  • Ordinary MeshInstance3D props you did not Poibuilderize
  • Particle atlases

A 300×180 import becomes a POT image ≤ 512. A 2048 atlas is downsized. Soft-alpha (blend) travels as RGBA8888; everything else prefers RGBA5551.

The dialog's "max texture size" dropdown is that clamp. Leave it at 512 unless you have measured a reason not to.

Environment

The Env menu (Dawn / Day / Dusk / Night) relights the scene. Export stores the preset name. The PSP app can override it at runtime.

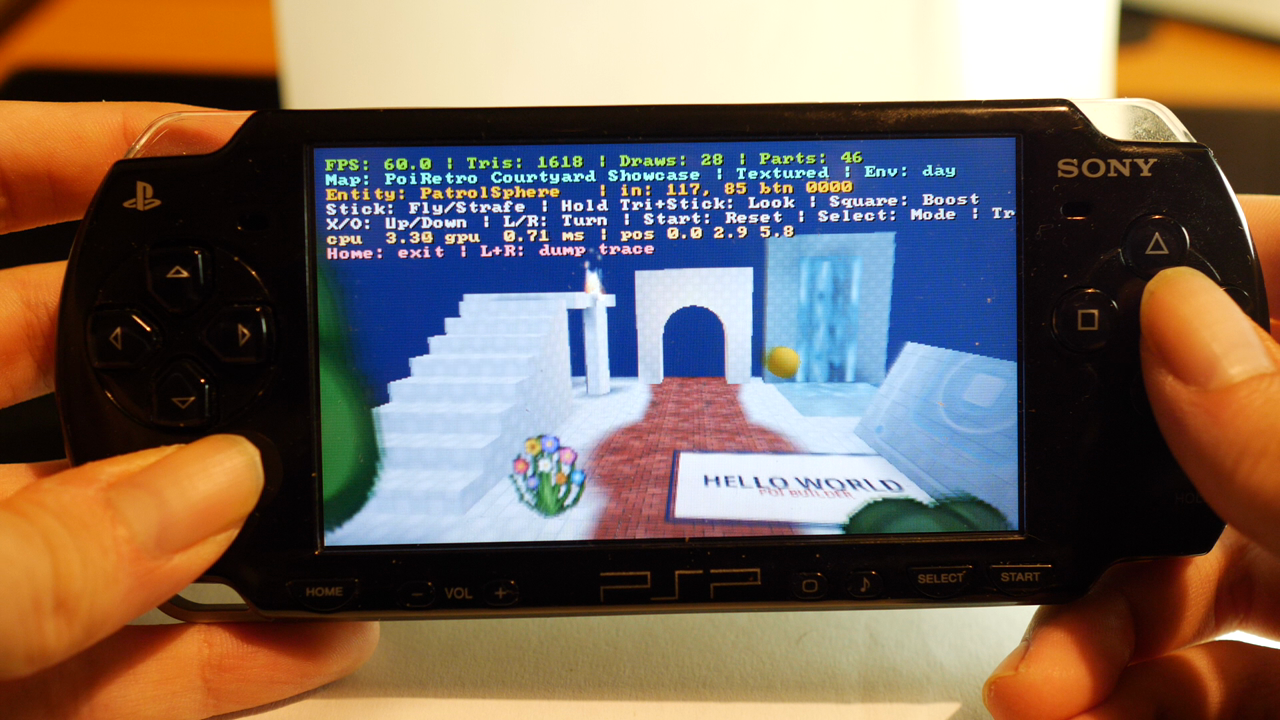

The same courtyard on a Sony PSP — not an emulator.
The same courtyard on a Sony PSP — not an emulator.

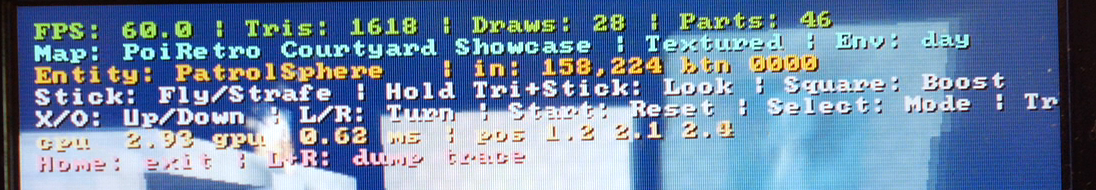

Measured on the device for the showcase map: 60 fps, 1618 tris, 20 draws. That row is that map, that camera, that build — not a promise about yours.
Measured on the device for the showcase map: 60 fps, 1618 tris, 20 draws. That row is that map, that camera, that build — not a promise about yours.

The retro demo engine is a proof of concept

The PSP engine in this repository (retro_engine/psp/) exists to answer two questions: does the .pbm format hold up, and how fast is a real retro target running it? That is all it tries to be — a proof of concept and a performance sanity check, not a game engine you ship with. It has no gameplay, no scripting, no toolchain polish, and it never will.

The contract is the file format, not the demo:

  • The .pbm binary layout is fully specified in The PBM format specification — write your own loader against it in your engine of choice.
  • The demo engine in the repo is a reference implementation: read its loader (retro_engine/psp/pbm_loader.c) and renderer to see how the format is meant to be consumed, then take what you need.
  • To eyeball the bake in Godot, reference the repository's viewer script (run_viewer.sh) or roll your own: it renders the same bake (baked / vertex colour / textures / wireframe / colliders + play mode).

Authoring for the retro target

Architecture constraints, performance measurements, and the .pbm byte layout are documented on GitHub:

A scrolling material must not be atlas-packed; export already exempts it.

PPSSPP is for "does it look right". Because host GPUs have massive caches, the emulator hides the PSP's ~8 KB texture cache cliff (a 19x drop from 480 Mfrag/s to 25 Mfrag/s on misses). Do not tune performance from the emulator.
