Shapes

Press on any surface, drag a base, set the height. Fifteen primitives share that language. Trim is the exception — it commits on release.

The drag

New ShapeRow 2 · ShapesNew ShapeArms primitive creation: drag the base on any surface, set the height, click to confirm.Needs: Nothing (always enabled) → pick a type. Nothing is created yet.
Press on a PBMesh face or on the grid. Drag the base in that plane.
The first motion locks the drag axis on axis-aligned surfaces.
Release. Move to set height along the face normal (negative grows below).
Click to confirm. Esc before that click creates nothing.

Modifiers during the drag:

Ctrl locks the drag direction and facing arrow.
Alt shows the height plane.
G toggles draw-on-grid (start on the plugin grid even over a mesh).

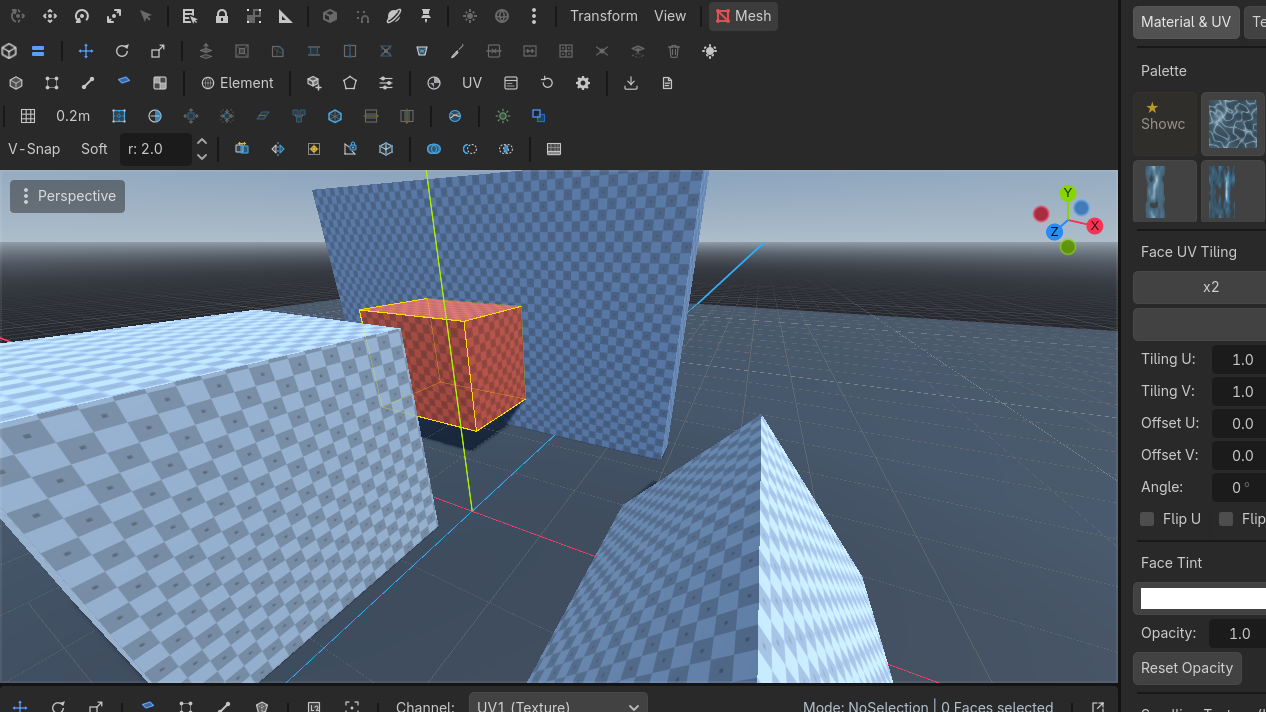

The same drag on a wall: the box grows along the wall's normal, not "up in the world".

Floor, then wall, then a slope — one gesture, three planes.

Shapes with parameters the drag cannot express (step count, arch, sides…) open a live-preview modal after the click. Apply keeps them, Cancel restores the placement values. Either way the node is selected.

Edit ParamsRow 2 · ShapesEdit ParamsRe-opens the creation parameters of the selected shape (until it is hand-edited).Needs: A pristine factory shape reopens that modal. It is enabled only while the mesh still has a shape_id and has not been topology-edited. Extrude, knife, delete — anything that rewrites faces — marks it edited, and the factory parameters no longer describe the mesh.

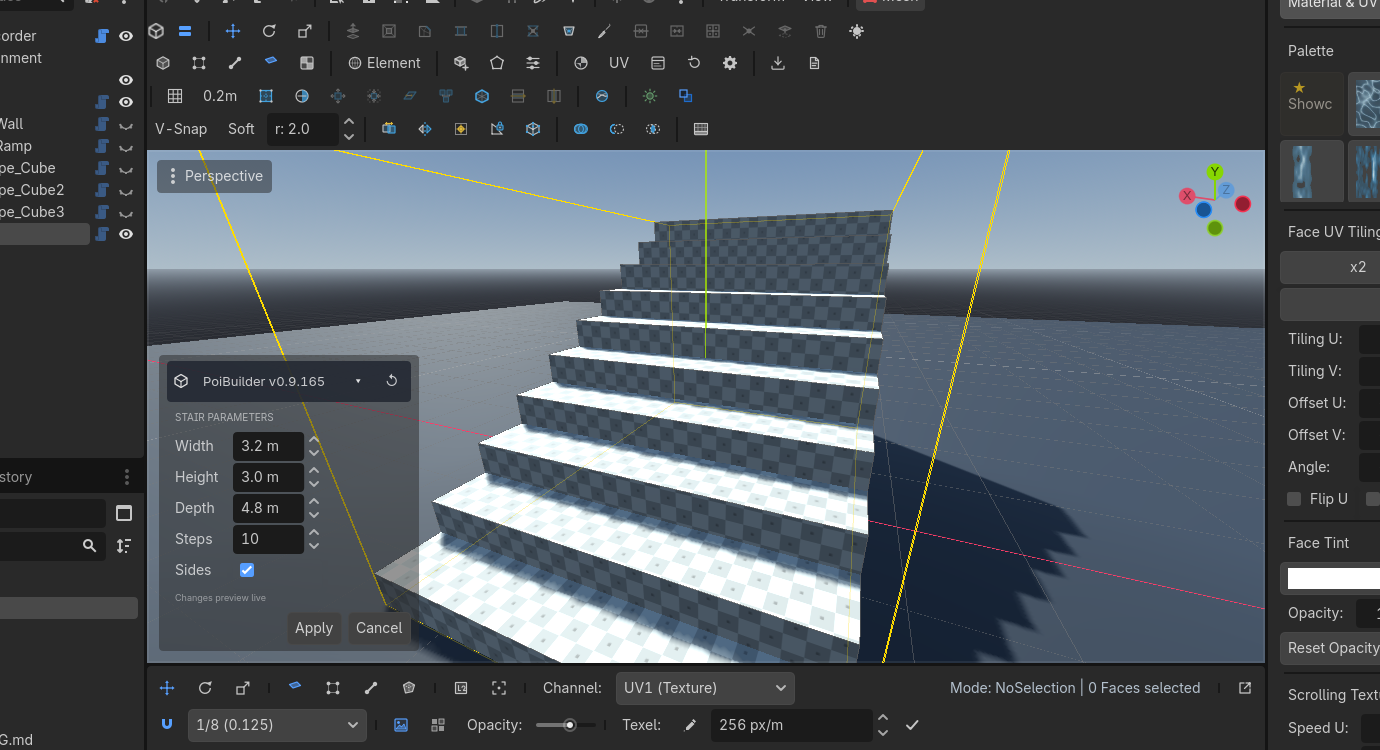

Live parameter modal — adjusting step count updates the preview mesh in real time.

The fifteen

Shape	Use it for	Parameters (defaults)
Cube	Blocking, floors, walls	width / height / depth
Stair	Straight runs between floors	size + steps (6), sides
Curved stair	Spiral / quarter-turn	width 1.5 m, height 2 m, inner radius 0.5 m, curvature 180°, steps 8, sides
Prism	Roofs, ramps	size
Cylinder	Columns	radius 0.5 m, height 1 m, sides 8
Plane	Floors, water sheets	width / depth 1 m
Door	Openings, arched gateways	3 × 2.5 × 1 m, opening 2 m, frame 0.5 m, arched, 6 arch segments
Pipe	Hollow columns, ducts	radius 0.5 m, height 1 m, thickness 0.125 m, sides 8
Cone	Caps, roofs	radius 0.5 m, height 1 m, sides 8
Sprite	Billboards, trees, signs	width / height 1 m, lit, cast shadow, auto-orient
Arch	Openings, bridges	radius 1 m, depth 0.5 m, thickness 0.3 m, sides 8, sweep 180°
Sphere	Props, lights' stand-ins	radius 0.5 m, subdivisions 2
Torus	Column bases, rails	outer 0.5 m, tube 0.15 m
N-gon	Custom prism from the N-Gon tool	radius 1 m, height 2 m, sides 6
Trim	Skirting, cornice, dado — own page	profile, length, height 0.15 m, depth 0.05 m, arc segments, upside down, flip side

N-Gon is also a drawing tool: click points, Enter to set height.

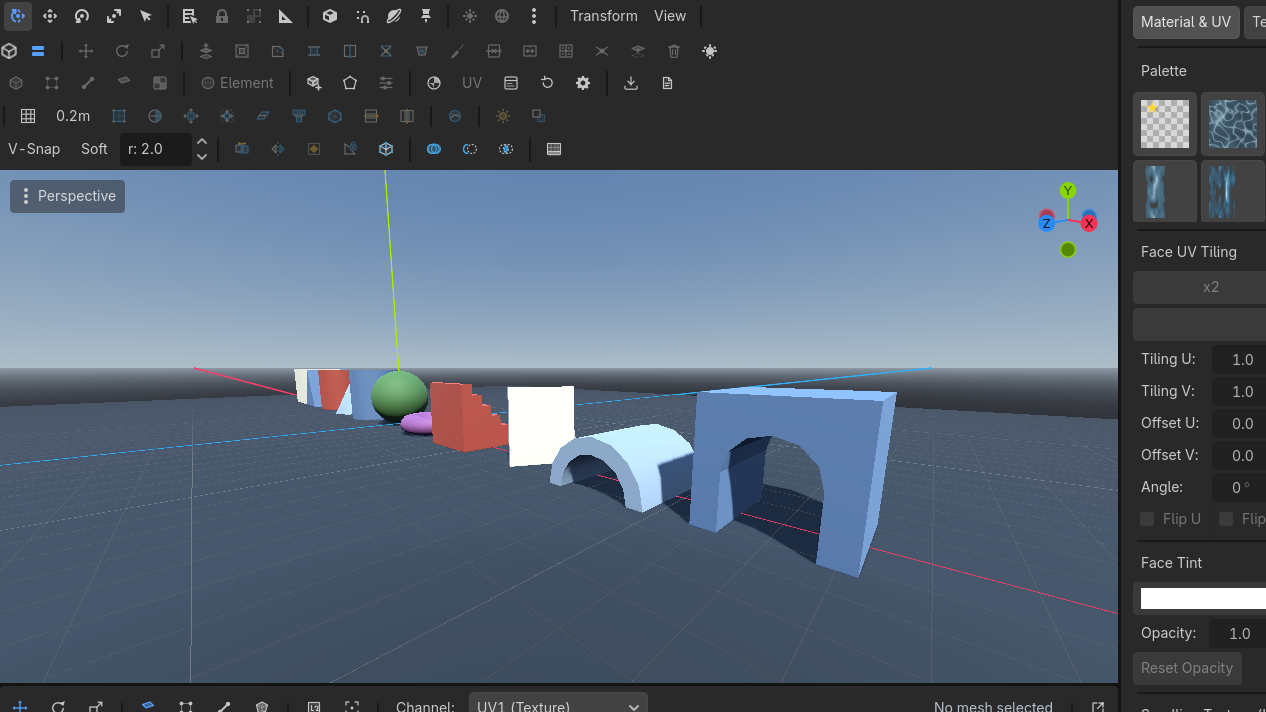

The primitive lineup, each generated from parameters.

Use cases

A staircase between two floors

New Shape → Stair. Drag from the lower slab toward the upper, along the run.
Height = floor-to-floor. Apply.
Raise Steps until the treads meet the landing. Edit Params if you already confirmed.
Sides on = closed stringers. Off = open treads.

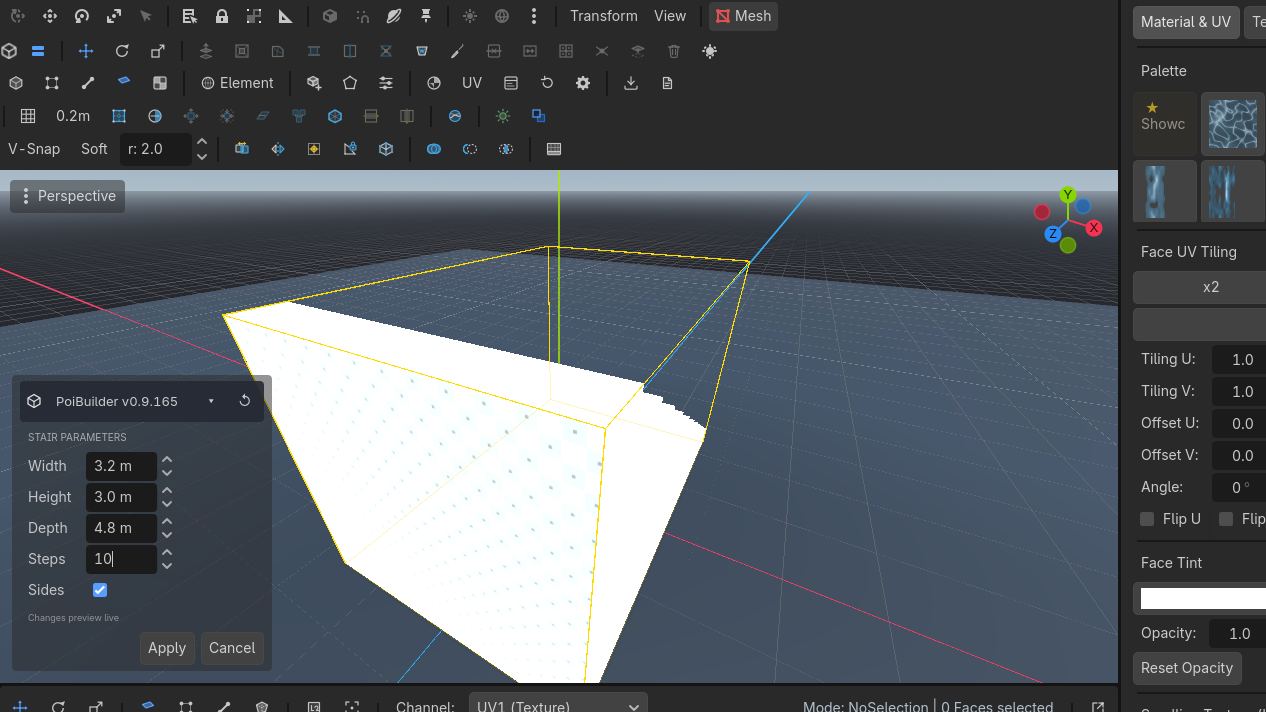

Live step count. The preview is the mesh you will keep.

An arched doorway

Directional shapes like Door and Stair display a solid orange arrow on the base plane while you drag. For a doorway:

What the arrow indicates: The arrow points in the doorway's facing direction — through the opening, perpendicular to the door frame (the path a character walks through). The doorway opening spans the width (perpendicular to the arrow), while the wall thickness is the depth (parallel to the arrow).
How the arrow is determined: Because doors are wider than they are thick, the arrow naturally chooses the shorter dimension of your dragged base rectangle (unlike stairs, which follow the longer dimension along the run). The arrow points away from the drag start along your mouse direction, snapped to the nearest cardinal world axis on cardinal surfaces to keep the doorway square with the world.
Locking direction with Ctrl: While dragging the base footprint, holding Ctrl locks the current facing direction and arrow vector. Once locked, moving the mouse resizes the base rectangle without the arrow recomputing or flipping 90° if the aspect ratio shifts.

Example gesture — making a door face a specific way:

If you want a doorway facing North (along -Z) in an East-West wall:

Pick New ShapeRow 2 · ShapesNew ShapeArms primitive creation: drag the base on any surface, set the height, click to confirm.Needs: Nothing (always enabled) → Door, then click on the floor where you want the doorway.
Drag a short distance in the direction you want it to face (pull slightly North). The orange arrow immediately appears, pointing North along the short axis.
Press and hold Ctrl to lock that facing direction.
While still holding Ctrl, drag laterally (East or West) to pull out the full doorway width (e.g. 2.5 m). Because Ctrl is held, the arrow stays locked pointing North instead of flipping sideways.
Release the mouse button to commit the base footprint.
Move the mouse upward to set the doorway height, then click to confirm.
The params modal opens: tick Arched, raise Arch Segments (6–8) for a rounder head, and adjust leg_width (the jamb width). Click Apply.

A torus column base

Drag Torus on the floor at the column's foot. Outer radius ≈ column radius + tube. Edit Params to fatten the tube without moving the node.

A sprite billboard

Sprite is a one-face card. Auto Orient To Camera turns it into a billboard at export. Place trees and signs with the sprite placer (B) instead if you want the carousel.

Height is along the pressed face's normal. On a wall that is "out of the wall", not world +Y. If the preview disappears into the floor, you dragged height negative — flip the mouse.
