Up to eight splat layers per face, a paintable decal layer for stamps, and a sprite placer on B.

Splatting

The Material dock's paint mode. Up to 8 layers per face. Brush the blend between two (or more) albedos — grass into rock, dirt into tile.

Which object gets painted: the brush prioritises the selected object — if the selected mesh is under the cursor, its face wins even when another mesh sits in front of it. Whatever the selection, any other mesh under the cursor still paints when the selected one is not hit. So with a cube selected you can paint the cube and a neighbouring floor (choose the cube by aiming at it); with the floor selected, aiming where the floor is in front simply paints the floor. Select the object you want to win ambiguous, overlapping spots.

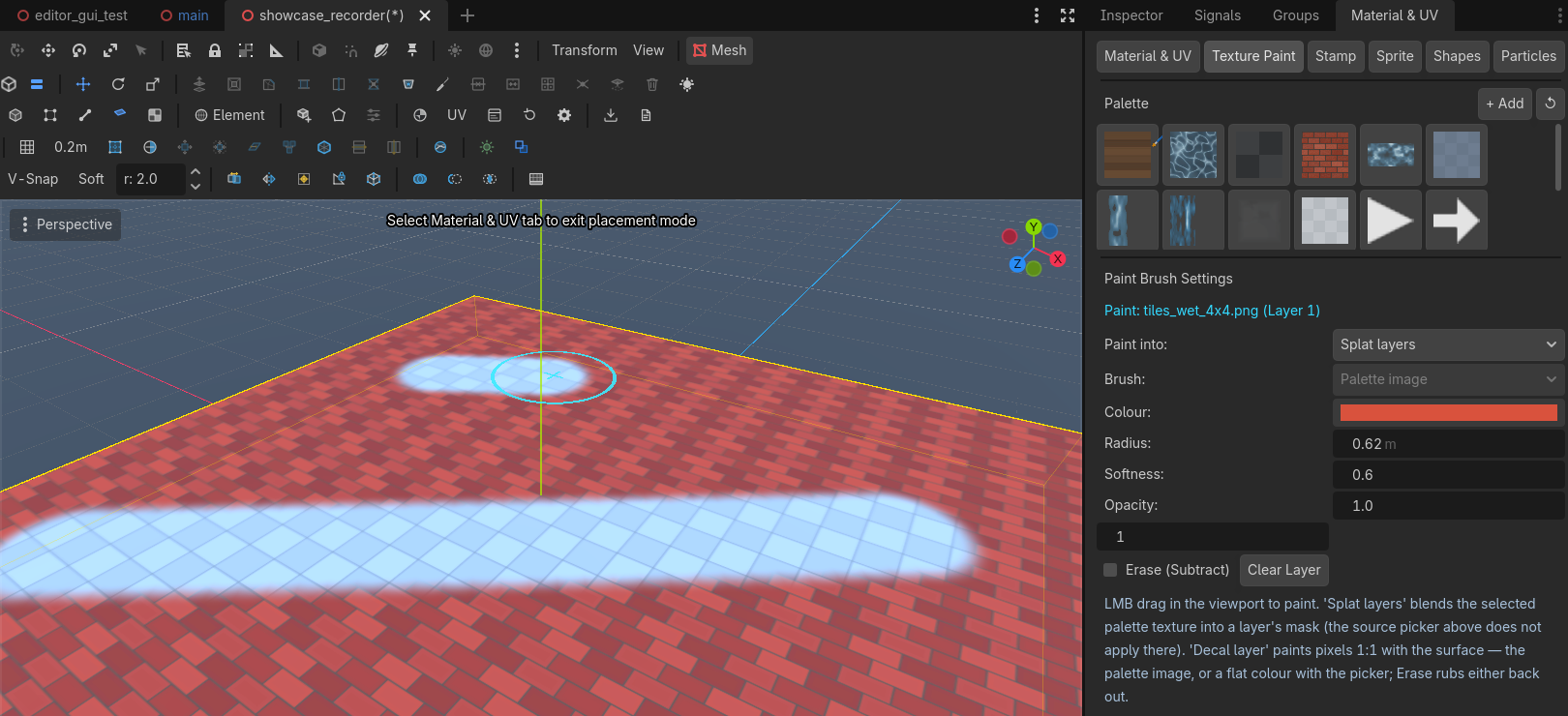

Multi-layer texture splatting.
Multi-layer texture splatting.

Saving painted maps. Paint masks are stored compressed, so a painted face adds a few KB to a scene, not ~90 KB. Maps made with older versions load and paint as before and shrink the first time you save them. (A map saved with this version needs this version or newer to open its paint.)

Optimize Paint. Maps painted with older versions (the v0.9.167 release and earlier) carry masks of up to 2048×2048 per face, which make the brush slow on big faces. The Optimize Paint button in the paint section shrinks the selected meshes' oversized masks to the size the brush now uses — much faster painting, smaller scenes. Detail finer than the new mask texel is lost; it is one undo step, so try it and Ctrl+Z if a soft edge suffers.

The brush writes weights, not new geometry.

Decal stamps

A stamp is a PNG painted into the surface, not a node hovering over it, and it is a single click — no dragging, no stroke: pick a tile pattern or a magic circle and click it onto a wall or a floor. Click to paste (no dragging): it lands in the face's decal layer at 256 texels/m — the decal layer keeps its own uniform density (the splat MASKS are clamped to 128..256 px and the export bake resolves them at export time) — and it keeps its own colors and alpha 1:1. The layer is cropped to the area you actually paint and grows as you spread out, so a stamp is as crisp on a 32 m courtyard floor as on a 2 m panel; the source image is resampled to the footprint (interpolated up, filtered down) rather than dropped to the nearest texel.

Because it is pixels, a stamp can span several faces: overhang a floor tile's edge, continue onto the neighbouring wall, cover a whole staircase side. It paints only faces its plane is roughly parallel to, so a stamp never smears sideways down a perpendicular wall; stamp and brush sizes are metres on screen, whatever the mesh's own scale.

The decal layer is paintable on its own, and it is the same layer stamps land in:

  • Brush → Color paints a flat colour with the editor's colour picker (the ring wears the colour).
  • Brush → Palette image dabs the selected texture as pixels — how you touch up or extend a decal by hand.
  • Erase rubs either back out, including parts of a stamp.
  • Radius, softness and opacity behave as they do for splatting; the Stamp tab's Open Decal Brush button jumps straight to these controls.
[note] The Brush row belongs to the decal layer: Paint into → Splat layers always paints the selected palette texture into a layer's mask, so the row is disabled (and says so) while that target is chosen. Palette image is the default source.
[note] Decal density is per face. The decal image is cropped to the area you actually painted and holds 256 texels/m — until that area gets big: past the window's caps (4096 px per axis, 32 MB of texels) the density falls so the paint never has to be dropped, and a 60 m floor painted across 25 m lands around 130 texels/m. The overlay's readout says what the face you are hovering gives you (Decal: 133 texels/m), and a stamp on its own — a small painted span — always keeps the full density. Large painted areas belong in splat layers; the decal layer is for stickers and dabbed detail.

Clear Layer (paint panel) clears the decal layer whenever the brush is pointed at Decal; Clear Decal Layer (stamp panel) wipes all of it at once. Every one of those actions is undoable.

Retro export bakes stamps into unique tiles; unpainted tiles reuse the base texture. Modern .glb export either bakes the whole stack into per-face textures or ships it as data — see Splatting in a modern .glb.

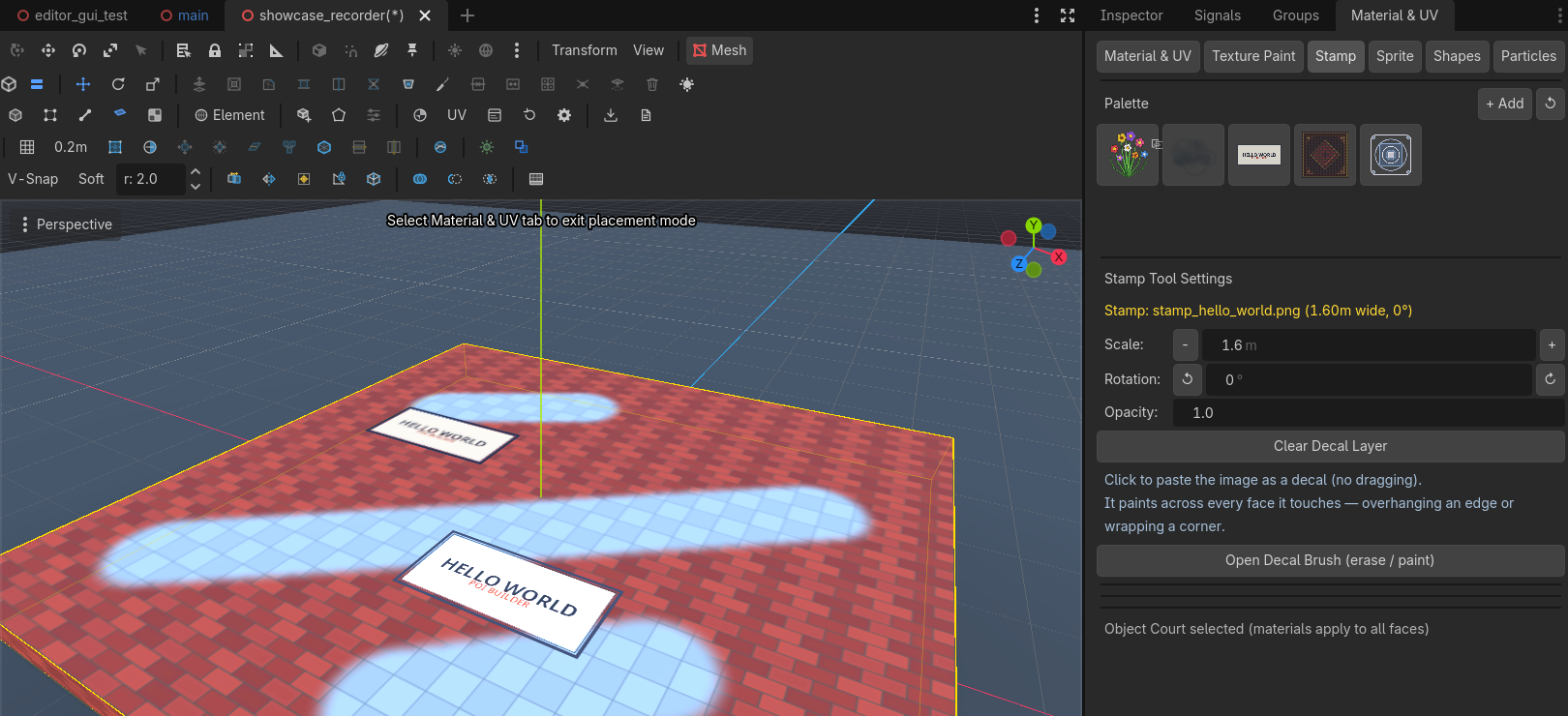

A stamp painted across two faces, then partly erased.
A stamp painted across two faces, then partly erased.

Sprite placer

B arms the placer. A carousel of billboard textures, raise and scale while placing. Good for trees, candles, distant props. Name prefix sprite/billboard/tree/… also marks a MeshInstance3D as a billboard at export.

While placing: drag to raise the billboard off the surface — a green line marks the ground anchor and the overlay shows the offset in metres — then move left/right to scale (the overlay shows width x height in metres plus the scale multiplier).

Asset categories

Sprites, stamps and paint textures live in separate pickers — a tree image never shows up in the stamp picker. Classification is by folder (.../sprites/, .../stamps/, .../particles/, .../textures/), then by name prefix (sprite_, stamp_, particle_, tree_, ...). Add your own by dropping files into res://materials/sprites/, res://materials/stamps/ or res://materials/textures/ — the plugin's bundled folder is never touched.

Scroll

Covered on Materials. A waterfall is a plane with scroll speed, plus an optional particle emitter at the lip.

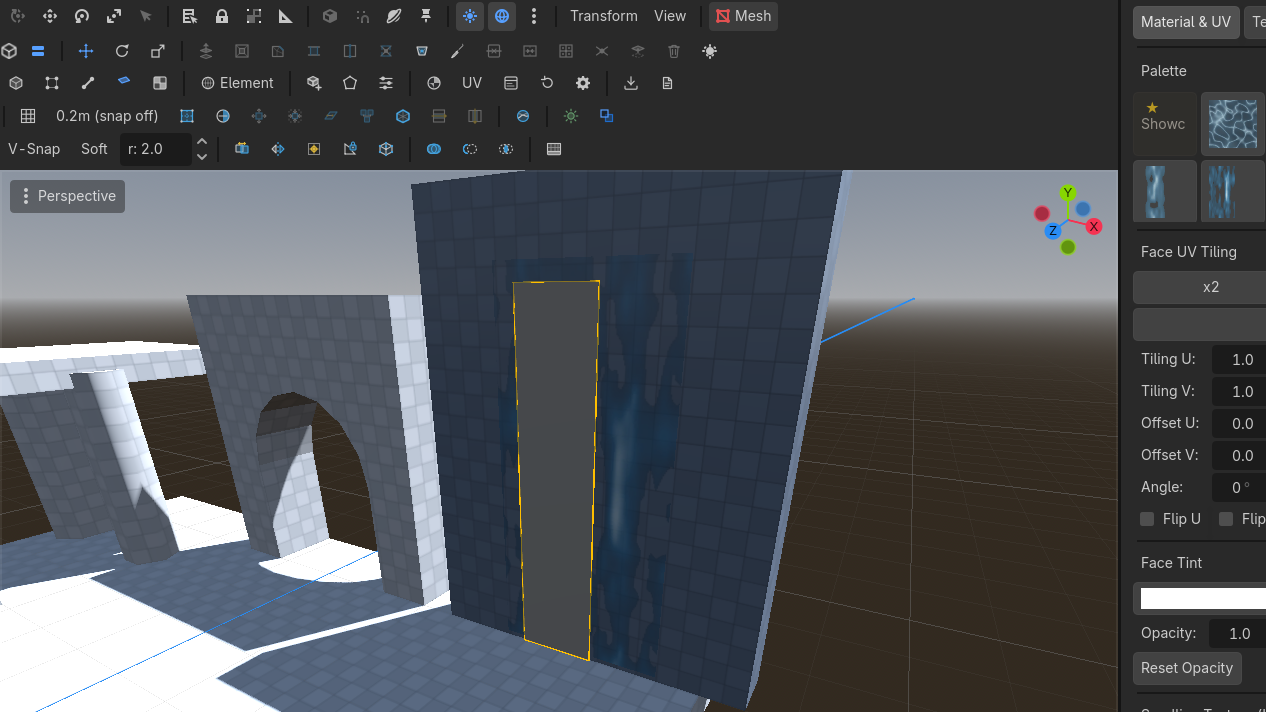

Scrolling sheets on a wall panel.
Scrolling sheets on a wall panel.
The scroll speed exports as data (retro: per-mesh uv_scroll; modern GLB: poi_uv_scroll in the material's glTF extras) — the consumer applies uv(t) = uv(0) + t · speed; the recipes live on Export & retro. The retro bake exempts a scrolling face from the tile atlas (it keeps its own texture — that is what slides), and a scrolling face must not also be splat-painted: paint bakes to a static tile.
A modern .glb export cannot carry a custom shader. Choose Modern paint → Bake into textures (each painted face becomes its own texture — any engine shows your paint) or Include splat data (masks and decal channels ship as sidecar PNGs plus a poi_splat record in the material extras; see Splatting in a modern .glb for the consumer recipe). To flatten paint inside Godot itself instead of at export, the repository's bake_splat.sh script does exactly that — reference it or script your own.
[note] Splat paint and LightmapGI now coexist on one mesh. Masks travel in their own vertex channel (CUSTOM0), so UV2 — the channel a lightmap unwrap lives in — is never touched by painting. Unwrap it from the UV editor's Lightmap button (it also flips the mesh to GI Mode: Static), bake the LightmapGI, and keep painting: the paint will not disturb the bake's UVs.
Transparent surfaces refuse paint. A billboard sprite or any alpha-blended material loses its alpha the moment it is converted to a splat (the conversion keeps albedo/colour/roughness only), so painting is REFUSED before anything changes: the brush ring goes grey, the overlay names the reason (transparent material), and strokes and stamp clicks on such faces are no-ops. A stamp spanning several faces paints only the opaque ones.

To see what a face's paint looks like up close, the UV editor's Splat masks channel shows the composited paint for the selected face (read-only — that space is written by painting, not by hand). UV1 (Texture) and UV2 (Lightmap) are both editable channels — see UV editor.

On the slowest machine we test on (an Intel UHD 630 integrated GPU), painting keeps up with the editor's frame rate: an interactive trace of real strokes measured 16.4 ms per frame at the median and 21.3 ms at the 99th percentile, with no hitch caused by the brush itself. The first stroke of a session can stall once (about 0.8 s on that machine); that is a one-time editor/render cost outside the paint code. How it got there: the brush sweeps the cursor path as one capsule instead of stamping overlapping dabs (v0.9.169), painting drains under a per-frame budget (v0.9.172), the live mask is sized from the face, 128–256 px, so small faces are no longer densely over-sampled (v0.9.180), and the per-frame pick no longer grows with the number of objects (v0.9.182).
